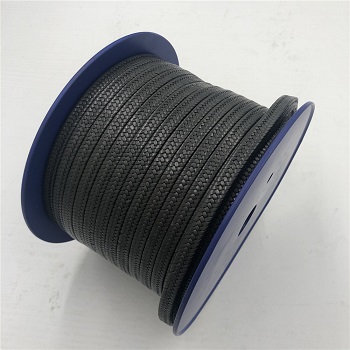

Description:Graphite packing with inconel jacketed mesh is braided by graphite yarn which is reinforced multi inconel wire and wrapped with inconel wire mesh. Graphite packing with inconel jacketed mesh is diagonal braided to form a dense but pliable packing, further enhanced with blocking agents.Easy installation and extrusion resistance in single-spool packing.The Graphite packing with inconel jacketed mesh is formable to tough in steam service 550bar, maintains integrity in steam up to 850℃. Inconel Mesh wrapping Graphite Fibre Braided Packing is special for high pressure and high temperature steam service.
Main Specification:
|
Temperature |
850℃（in the steam） |
|
450℃ Oxidizing condition（oxidizing condition） |
|
|
-204℃ Cryogenics （low temperature） |
|
|
Pressure |
9-45MPa |
|
PH range |
0-14 |
|
Linear speed |
2~15M/S |
|
Size |
3*3mm-60*60mm（or as request） |
Parameter:
Note: 3X3 is twisting instead of weaving.
|
Cross-section area |
Density |
g/m |
Cross-section area |
Density |
g/m |
|
3X3 |
1.25~1.30 |
12 |
8X8
|
1.15~1.25 |
97 |
|
4X4 |
1.25~1.30 |
21 |
9.5X9.5
|
1.15~1.25 |
108 |
|
4.7X4.7 |
1.25~1.30 |
31 |
10X10
|
1.15~1.25 |
120 |
|
5X5 |
1.25~1.30 |
32 |
11X11
|
1.15~1.25 |
145 |
|
6X6 |
1.25~1.30 |
45 |
12X12
|
1.15~1.25 |
172 |
|
6.5X6.5 |
1.25~1.30 |
53 |
12.5X12.5
|
1.15~1.25 |
194 |
|
7X7 |
1.25~1.30 |
82 |
14X14
|
1.15~1.25 |
235 |
|
15X15 |
1.15~1.25 |
270 |
24X24
|
1.0~1.10 |
615 |
|
16X16 |
1.10~1.20 |
294 |
25X25
|
1.0~1.10 |
677 |
|
17.4X17.4 |
1.10~1.20 |
348 |
28X28
|
1.0~1.10 |
823 |
|
18X18 |
1.10~1.20 |
373 |
30X30
|
1.05~1.10 |
945 |
|
19X19 |
1.05~1.15 |
397 |
32X32
|
1.05~1.10 |
1075 |
|
20X20 |
1.05~1.15 |
440 |
35X35
|
1.00~1.05 |
1255 |
|
22X22 |
1.05~1.15 |
532 |
40X40
|
0.95~1.05 |
1600 |
How to Order：
|
Item |
Order Code |
|
Cotton fibre reinforced graphite packing |
KXT-P1100 |
|
Glass fibre reiforced graphite packing |
KXT-P1101 |
|
Stainless steel wire reinforced graphite packing |
KXT-P1102 |
|
Nickel wire reinforced graphite packing |
KXT-P1103 |
|
Inconnel wire reinforced graphite packing |
KXT-P1104 |
|
Innconel mesh jacket graphite packing |
KXT-P1105 |
|
High strength graphite packing for temperature and high pressure |
KXT-P1106 |
|
PTFE impregnated graphite packing |
KXT-P1107 |
| No ignition loss graphite packing | KXT-P1108 |
| Expanded graphite packing with carbon fiber corners | KXT-P1109 |
For more information,please contact with us directly,thanks！
