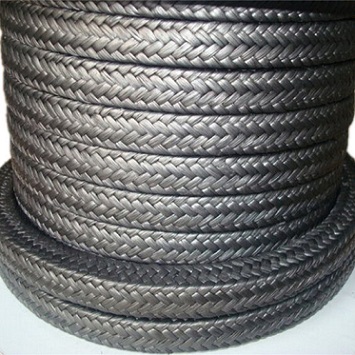

Description:Graphite braided packing impregnated with PTFE latex is made from expanded graphite fiber impregnated with mixed PTFE latex and inert lubricant.This kind of graphite packing has better resist cautery capability and effective heat exchange capability.Graphite impregnated PTFE packing has perfect self-lubrication.It is widely used in sealing pump shaft.Graphite impregnated PTFE packing can also be used in sealing water,steam,solvents for agitators,mixers,autoclaves and centrifugal pumps ect.
Main Specification:
|
Temperature |
Up to 280℃ |
|
Pressure |
30MPa |
|
PH range |
0-14 |
|
Linear speed |
20M/S |
|
Size |
3*3mm-60*60mm（or as request） |
Parameter:
Note: 3X3 is twisting instead of weaving.
|
Cross-section area |
Density |
g/m |
Cross-section area |
Density |
g/m |
|
3X3 |
1.25~1.30 |
12 |
8X8
|
1.15~1.25 |
97 |
|
4X4 |
1.25~1.30 |
21 |
9.5X9.5
|
1.15~1.25 |
108 |
|
4.7X4.7 |
1.25~1.30 |
31 |
10X10
|
1.15~1.25 |
120 |
|
5X5 |
1.25~1.30 |
32 |
11X11
|
1.15~1.25 |
145 |
|
6X6 |
1.25~1.30 |
45 |
12X12
|
1.15~1.25 |
172 |
|
6.5X6.5 |
1.25~1.30 |
53 |
12.5X12.5
|
1.15~1.25 |
194 |
|
7X7 |
1.25~1.30 |
82 |
14X14
|
1.15~1.25 |
235 |
|
15X15 |
1.15~1.25 |
270 |
24X24
|
1.0~1.10 |
615 |
|
16X16 |
1.10~1.20 |
294 |
25X25
|
1.0~1.10 |
677 |
|
17.4X17.4 |
1.10~1.20 |
348 |
28X28
|
1.0~1.10 |
823 |
|
18X18 |
1.10~1.20 |
373 |
30X30
|
1.05~1.10 |
945 |
|
19X19 |
1.05~1.15 |
397 |
32X32
|
1.05~1.10 |
1075 |
|
20X20 |
1.05~1.15 |
440 |
35X35
|
1.00~1.05 |
1255 |
|
22X22 |
1.05~1.15 |
532 |
40X40
|
0.95~1.05 |
1600 |
How to Order：
|
Item |
Order Code |
|
Cotton fibre reinforced graphite packing |
KXT-P1100 |
|
Glass fibre reiforced graphite packing |
KXT-P1101 |
|
Stainless steel wire reinforced graphite packing |
KXT-P1102 |
|
Nickel wire reinforced graphite packing |
KXT-P1103 |
|
Inconnel wire reinforced graphite packing |
KXT-P1104 |
|
Innconel mesh jacket graphite packing |
KXT-P1105 |
|
High strength graphite packing for temperature and high pressure |
KXT-P1106 |
|
PTFE impregnated graphite packing |
KXT-P1107 |
| No ignition loss graphite packing | KXT-P1108 |
| Expanded graphite packing with carbon fiber corners | KXT-P1109 |
For more information,please contact with us directly,thanks！
