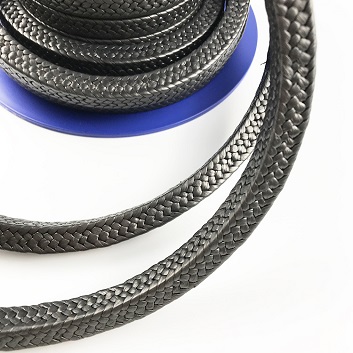

Expanded graphite braided packing is made from expanded pure graphite yarn,braided into packing through all kinds of technology of braiding.

Model:KXT-P1100

Send Inquiry

Product Description

Description:Expanded graphite braided packing is made from expanded pure graphite yarn,braided into packing through all kinds of technology of braiding.It can be reinforced with other metalor non-metal material. The products are almost suitable to all media, such as not water, steam, acids, alkalis, organic solvents, hydrocarbons, low temperature liquids, ect. The sealing capability is more better and safety. It is the most effective composite parts for solving problems.

Main Specification:

Temperature

1650℃ Non oxidizing condition(Non oxidizing condition)

650℃ Steam(In the steam)

450℃ Oxidizing condition(oxidizing condition)

-204℃ Cryogenics (low temperature)

Pressure

9-45MPa

PH range

0-14

Linear speed

2~15M/S

Size

3*3mm-60*60mm(or as request)

Parameter:
Note: 3X3 is twisting instead of weaving.

Cross-section area
(mm)

Density
(g/cm3)

g/m

Cross-section area
(mm)

Density
(g/cm3)

g/m

3X3

1.25~1.30

12

8X8

1.15~1.25

97

4X4

1.25~1.30

21

9.5X9.5

1.15~1.25

108

4.7X4.7

1.25~1.30

31

10X10

1.15~1.25

120

5X5

1.25~1.30

32

11X11

1.15~1.25

145

6X6

1.25~1.30

45

12X12

1.15~1.25

172

6.5X6.5

1.25~1.30

53

12.5X12.5

1.15~1.25

194

7X7

1.25~1.30

82

14X14

1.15~1.25

235

15X15

1.15~1.25

270

24X24

1.0~1.10

615

16X16

1.10~1.20

294

25X25

1.0~1.10

677

17.4X17.4

1.10~1.20

348

28X28

1.0~1.10

823

18X18

1.10~1.20

373

30X30

1.05~1.10

945

19X19

1.05~1.15

397

32X32

1.05~1.10

1075

20X20

1.05~1.15

440

35X35

1.00~1.05

1255

22X22

1.05~1.15

532

40X40

0.95~1.05

1600

How to Order:

Item

Order Code

Cotton fibre reinforced graphite packing

KXT-P1100

Glass fibre reiforced graphite packing

KXT-P1101

Stainless steel wire reinforced graphite packing

KXT-P1102

Nickel wire reinforced graphite packing

KXT-P1103

Inconnel wire reinforced graphite packing

KXT-P1104

Innconel mesh jacket graphite packing

KXT-P1105

High strength graphite packing for  temperature and high pressure

KXT-P1106

PTFE impregnated graphite packing

KXT-P1107

No ignition loss graphite packing KXT-P1108
Expanded graphite packing with carbon fiber corners KXT-P1109
