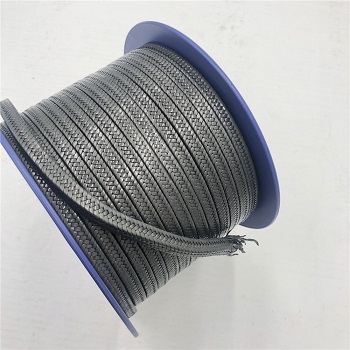

Graphite gland packing with carbon fiber corner is braided from expanded graphite yarn, which can withstand high temperature and carbon fiber with superior corrosion resistance.

Model:KXT-P1109

Send Inquiry

Product Description

Description:Graphite gland packing with carbon fiber corner is braided from expanded graphite yarn, which can withstand high temperature and carbon fiber with superior corrosion resistance. The carbon fiber in four corners provides higher resistance to extrusion and attrition. This packing can effectively avoid leakage, especially suitable in application of powder stantion's valve with high temperature and pressure.

Main specification:

Temperature

-200℃~+650℃(steam)

-200℃~+565℃(atmosphere)

Pressure

30MPa(can only be used in valve and other static sealing condition)

PH range

0-14

Linear speed

0~2M/S

Size

3*3mm-60*60mm(or as the request of customer)

Parameter:
Note: 3X3 is twisting instead of weaving.

Cross-section area
(mm)

Density
(g/cm3)

g/m

Cross-section area
(mm)

Density
(g/cm3)

g/m

3X3

1.25~1.30

12

8X8

1.15~1.25

97

4X4

1.25~1.30

21

9.5X9.5

1.15~1.25

108

4.7X4.7

1.25~1.30

31

10X10

1.15~1.25

120

5X5

1.25~1.30

32

11X11

1.15~1.25

145

6X6

1.25~1.30

45

12X12

1.15~1.25

172

6.5X6.5

1.25~1.30

53

12.5X12.5

1.15~1.25

194

7X7

1.25~1.30

82

14X14

1.15~1.25

235

15X15

1.15~1.25

270

24X24

1.0~1.10

615

16X16

1.10~1.20

294

25X25

1.0~1.10

677

17.4X17.4

1.10~1.20

348

28X28

1.0~1.10

823

18X18

1.10~1.20

373

30X30

1.05~1.10

945

19X19

1.05~1.15

397

32X32

1.05~1.10

1075

20X20

1.05~1.15

440

35X35

1.00~1.05

1255

22X22

1.05~1.15

532

40X40

0.95~1.05

1600

How to Order:

Item

Order Code

Cotton fibre reinforced graphite packing

KXT-P1100

Glass fibre reiforced graphite packing

KXT-P1101

Stainless steel wire reinforced graphite packing

KXT-P1102

Nickel wire reinforced graphite packing

KXT-P1103

Inconnel wire reinforced graphite packing

KXT-P1104

Innconel mesh jacket graphite packing

KXT-P1105

High strength graphite packing for  temperature and high pressure

KXT-P1106

PTFE impregnated graphite packing

KXT-P1107

No ignition loss graphite packing KXT-P1108
Expanded graphite packing with carbon fiber corners KXT-P1109

For more information,please contact with us directly,thanks!
